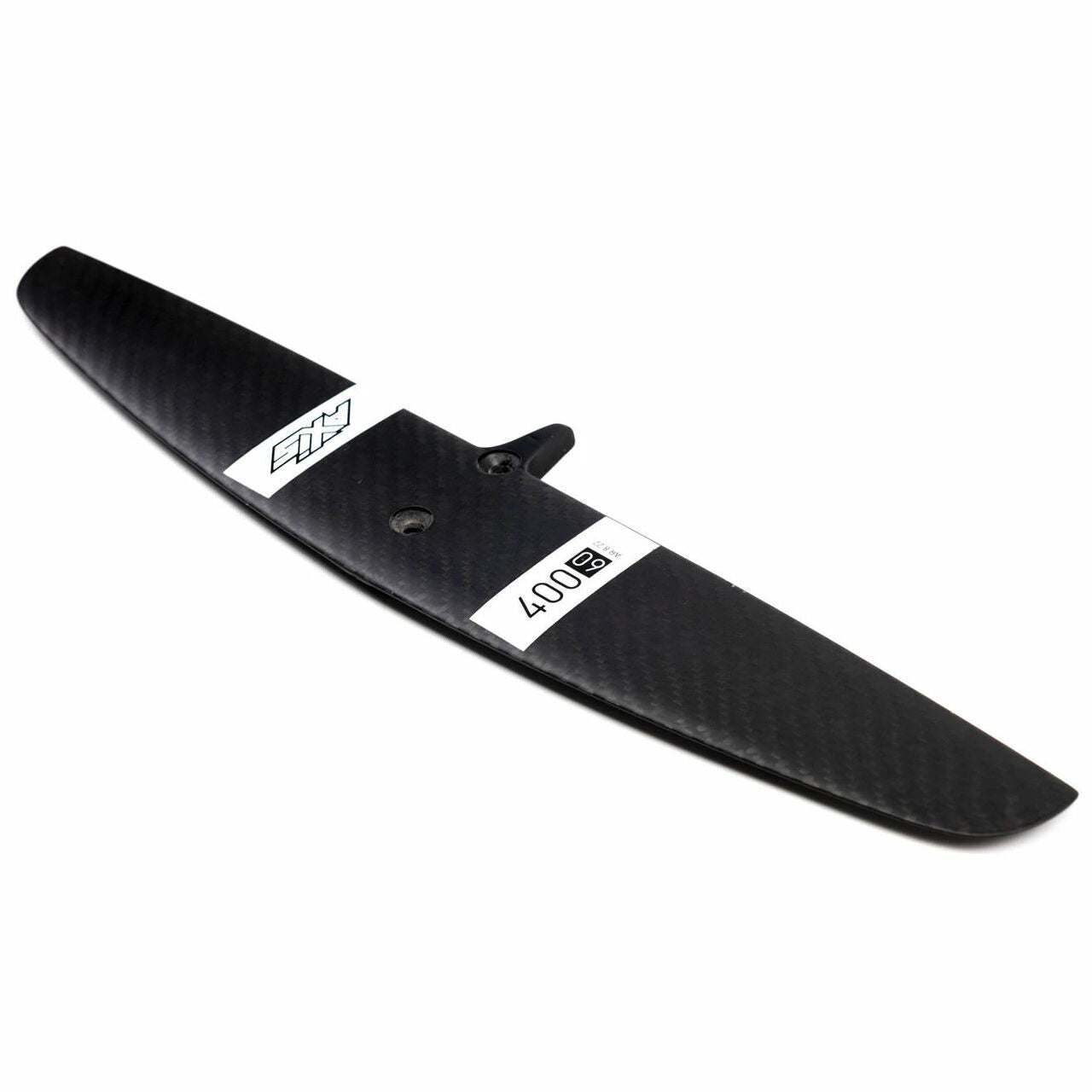

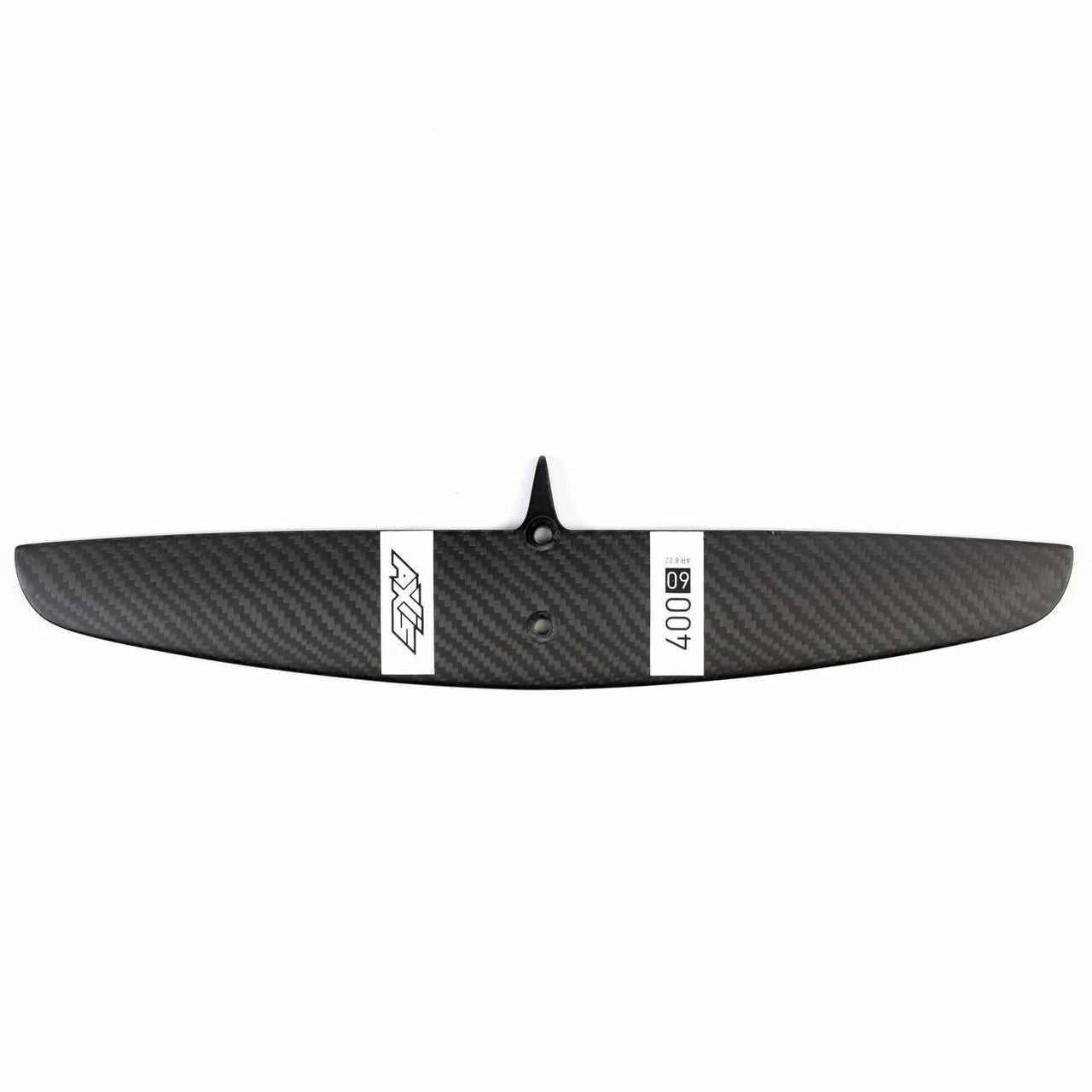

AXIS High Aspect Flat Carbon Rear Wing - 400mm

The AXIS Foils 400 HA Flat Carbon Rear Wing is one of Axis' fastest rear wings, and the perfect companion to any of their performance front wings.

At 8.22 Aspect Ratio, 60mm chord and flatter foil section, the 400 HA Flat Carbon Rear Wing is FAST, loose, and ideal for all high performance foiling. From prone, to winging, to SUP, to downwind to kite, to pump. A great high performance rear wing for multiple uses.

When you purchase the AXIS 400mm HA Flat carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.


WINGSPAN: 400 mm / 15.75 in

CHORD: 60 mm / 2.36 in

ASPECT RATIO: 8.22

ACTUAL AREA : 196.24 cm² / 30.42 IN²

PROJECTED AREA: 194.66 cm² / 30.17 IN²

VOLUME: 70.77 cm³ / 4.32 IN³

Assembly

What screws to mount wing to the fuselage:


Rear Wing

Front Screw

Rear Screw

500mm x 90mm

M6 x 25mm

M6 x 25mm

440mm x 90mm

M6 x 25mm

M6 x 25mm

400mm x 90mm

M6 x 25mm

M6 x 25mm

460mm x 60mm

M6 x 22mm

M6 x 22mm

400mm x 60mm

M6 x 22mm

M6 x 22mm

420mm x 60mm

M6 x 22mm

M6 x 22mm

380mm x 60mm

M6 x 22mm

M6 x 22mm

390mm x 80mm

M6 x 25mm

M6 x 25mm

370mm x 80mm

M6 x 25mm

M6 x 25mm

340mm x 80mm

M6 x 25mm

M6 x 25mm

500mm x 90mm

M6 x 25mm

M6 x 25mm
